Semi-elliptik ujung piring, kepala tangki untuk penukar panas
Detail Produk
| Bahan: | SA 516 Gr 60 | Pengobatan permukaan:: | Pengeboran pasir / pemurnian |
|---|---|---|---|
| Kata Kunci: | ujung piringan elips | Jenis barang: | Kepala Elips |
| Diatemer: | 1800mm | Ketebalan: | 10mm |
| SF: | 50 mm | sertifikat: | PED ,ISO14001,ASME |
| Menyoroti |
10mm Semi-Eliptik Ujung Piring,1800mm Semi-Eliptik Dish End,Kepala Penukar Panas Semi Elips |
||
Deskripsi Produk

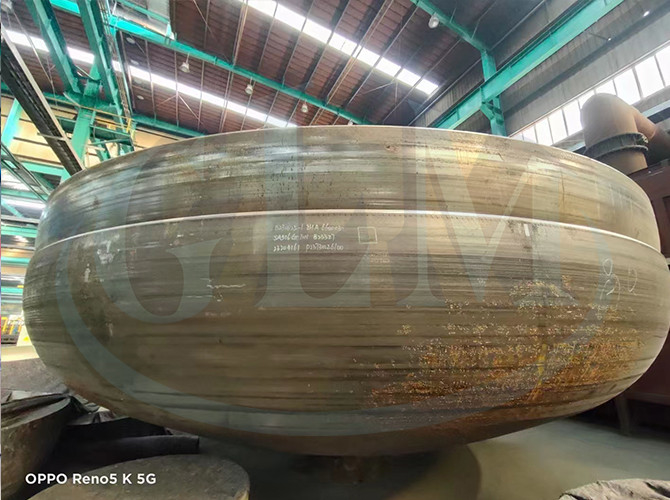

Semi-elliptik ujung piring, kepala tangki untuk penukar panas
Deskripsi SemiUjung piring elips
Jenis barang: Ujung piring elips
Deskripsi / Ukuran: Ujung piring semi elips, ID=1800mm, ketebalan Min 10mm,SF=50mm
Spesifikasi material: SA516 Gr 70
Spesifikasi ujung elips:
| Nama merek: | GLM |
| Diameter: | 89mm--10000mm |
| Ketebalan: | 2mm-300mm |
| Rasio pengurangan: | sekitar 10% |
| Bahan: | Baja karbon, baja tahan karat, dupleks, super dupleks, aluminium, nikel dan paduan nikel, tembaga dan paduan tembaga, titanium dan paduan nya, zirkonium dan semua kombinasi bahan lapis. |
| Metode pembentukan: | Pembentukan panas, pembentukan dingin |
| Perawatan permukaan: | Pengeboran Pasir, Pemutih, Minyak, Pembuangan |
| Pemeriksaan: | UT,RT,MT,PT,TOFD. |
| Standar yang berlaku: | ASME,PED dan GB |
| Sertifikat | ISO9001, ISO45001, OHSAS18001 |
| Aplikasi: |
Seperti minyak, industri kimia, konservasi air, tenaga listrik, boiler, mesin, metalurgi, konstruksi sanitasi dll. |
| Paket: | Kasus kayu, pallet kayu, pallet baja atau sesuai kebutuhan pelanggan |
| Produk khusus: | Tersedia |
Produk dari semi elips kepala piring
Tentang kemasan kepala elips:
Kasus kayu, kantong plastik palet kayu atau sesuai kebutuhan pelanggan.
