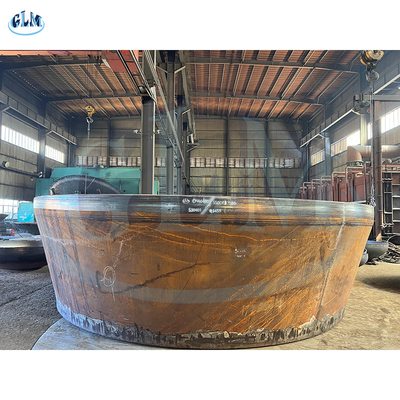

SA516 Gr.70N Clad Cone Dished Head Diameter 5500mm
Detail Produk
| Kode Kepala: | Kepala hidangan kerucut | Teknologi: | Pengepresan Panas, Pengepresan dingin |
|---|---|---|---|
| Rasio pengurangan:: | Sekitar 10% | Aplikasi: | Tangki penyimpanan, boiler, peralatan pemisahan, menara |
| Bahan: | SA516 GR.70N | Kata kunci: | kepala kerucut berlapis |
| Diameter: | 5500mm | ||
| Menyoroti |
Kepala berlapis kerucut,SA516 Kepala berlapis kerucut,Kepala tangki kerucut 5500mm |
||
Deskripsi Produk
Kepala berlapis kerucut dengan piring Diameter 5500mm
Deskripsi Produk
Kepala berlapis kerucut
CHA(45o)
Ri ∆0.1Di dan Ri≥3,
Ta=45o
DN dinyatakan dalam Di/Dis
CHA(30o)
Ri≥0,1Di dan Ri≥3t
a=30o
DN dinyatakan dalam Di/Dis
Spesifikasi
| Nama merek: | GLM |
| Diameter: | 89mm--10000mm |
| Ketebalan: | 2mm-300mm |
| Rasio pengurangan: | sekitar 10% |
| Bahan: | Baja karbon, baja tahan karat, dupleks, super dupleks, aluminium, nikel dan paduan nikel, tembaga dan paduan tembaga, titanium dan paduan nya, zirkonium dan semua kombinasi bahan lapis. |
| Metode pembentukan: | Pembentukan panas, pembentukan dingin |
| Perawatan permukaan: | Pengeboran Pasir, Pemutih, Minyak, Pembuangan |
| Pemeriksaan: | UT,RT,MT,PT,TOFD. |
| Standar yang berlaku: | ASME,PED dan GB |
| Sertifikat | ISO9001, ISO45001, OHSAS18001 |
| Aplikasi: |
Seperti minyak, industri kimia, konservasi air, tenaga listrik, boiler, mesin, metalurgi, konstruksi sanitasi dll. |
| Paket: | Kasus kayu, pallet kayu, pallet baja atau sesuai kebutuhan pelanggan |
| Produk khusus: | Tersedia |
Gambar produk
